Day Van

Based on the Ford Tourneo luxury 8 seat people carrier, this compact Day Van offers unrivalled comfort with up to 8 removable seats.

Sleep soundly on a 4" luxury mattress suspended over your valued possessions securely stowed in the generous boot. The pop top model affords an optional roof bed for two.

Removable seats and furniture modules define the Day Vans true versatility, from an empty Van to a 6 seat Camper to a 8 seat people carrier, it gets close to being all things to all people.

The robust and well engineered suspended bed creates valuable floor space for Dogs to travel safely in their own space.

From bikes to canoes to wardrobes or fridge freezers the Day vans flexible load area eliminates the need for a less manoeuvrable longer wheelbase.

Twin side doors and the accessible kitchen module promote a sociable space inside or outside depending on the season.

Overview

THE CONCEPT OF THE DAY VAN is to start with a base vehicle which comes complete with 8 travel seats, an insulated floor with additional floor sockets configured to offer multiple seat plans, curtains, silver screens, lighting, 12V power socket, a swivel passenger seat, engineered fixing points and an inside/outside table.

Unlike any other Camper, you then choose what Ford options you want such as the 155ps engine, alloy wheels or tow bar for example.

Then you can start to configure your habitation options – which bed format? What seats do you want us to buy back? What furniture modules best meets your lifestyle?

Remember most habitation option can be retro fitted if not required immediately.

THE DAY VAN IS AN INNOVATIVE AWARD WINNER because of its versatility. However consider if it has to do everything?

The Auto Camper MRV also offers the same suspended bed system and removable seats, but the furniture is fixed offering 2 hobs for cooking and under floor water tanks.

If you must have 8 seats and the option of an empty Van, then read on. If you can manage with 5 seats and like more habitation facilities then also visit the Auto Campers MRV page.

Which Roof?
Lo-Line, Hi-Line or Pop-Top
Base Vehicle Specifications

Auto Campers take great pride in only converting the Day Van on the all new passenger carrying 8 seat custom Tourneo and Transit kombi variants.

Because the Tourneo and Kombi originate with the highest possible M1 (Car) safety standards and carry a 5 star rated NCAP rating, your safety is only equalled by the comfort of wide reclining

contoured Ford engineered travel seats, with isofix points on the double seats.

Best in class fuel economy and Co2 emissions is achieved with standard 6 speed manual FWD transmission, smart regenerative charging and Ford’s auto stop start. Power is delivered smoothly from the medium 125 PS output and optional 155 PS high output TDCI engines.

Euro NCAP

New car like comfort has to be experienced to be appreciated, because the Transit is a completely new design from the floor up, you will notice how well the doors shut and how easily the precise controls fall to hand as you drive effortlessly from your elevated driving position.

The Transit brand is historically recognised as the best selling most robust van used by White van man, the Post Office, the Army and as a school Minibus. Whilst the New Transit Custom maintains all the robust design, serviceability and low running costs of its predecessors, Ford have borrowed their Kinetic design and quality from Focus & Fiesta for the Transit Custom, culminating into a stylish vehicle that looks as good in Chelsea as it does in the Highlands…

Twin side doors, Door mirrors with blind spot eliminator and integrated side indicator, powered front windows, flip open second row windows, headlights with courtesy delay, Day running lights, glazed rear tailgate with wash wipe, remote double locking, auto stop start, trip computer, rear courtesy light with theatre dimming, Driver & front Passenger air bags, front seat side thorax airbags, side curtain airbags and side running boards.

Metallic paint, colour coded front bumper, front fog lights, projector style headlamps with integral cornering lights, 15” full wheel covers, Electrically operated power foldable and heated door mirrors, heated screen, rear privacy glass, auto sensing wipers and lights, Front & rear parking sensors, Radio/CD with dot matrix display, Ford Sync, USB, 6 speakers, Leather trimmed steering wheel, cruise control Front air conditioning, carpet and rubber floor coverings, lockable glove box, heated cab seats.

Floor Plans

SeatingSEATING

The reclining passenger single cab seat rotates 180 degrees to provides a comfortable habitation seat with slide adjustment to dine or relax. Optional drivers swivel seat and lowered handbrake available to create the ultimate habitation space.

Passengers travel securely and comfortably in Ford factory type approved seats with integral lap and diagonal safety belts and adjustable head rests.

The rear seats are positioned as a second and third row with the single seat adjacent to the passenger side door and an adjacent double seat behind the driver’s seat which then replicate in the 3rd row.

All rear seat backs independently recline and fold horizontally on to the seat base and then pivot another 90 degrees forward into the vertical position, Seats then can be removed or repositioned into additional seat sockets to create various combinations including a 6 seat camper.

Day Van Seating

COOKING & DINING

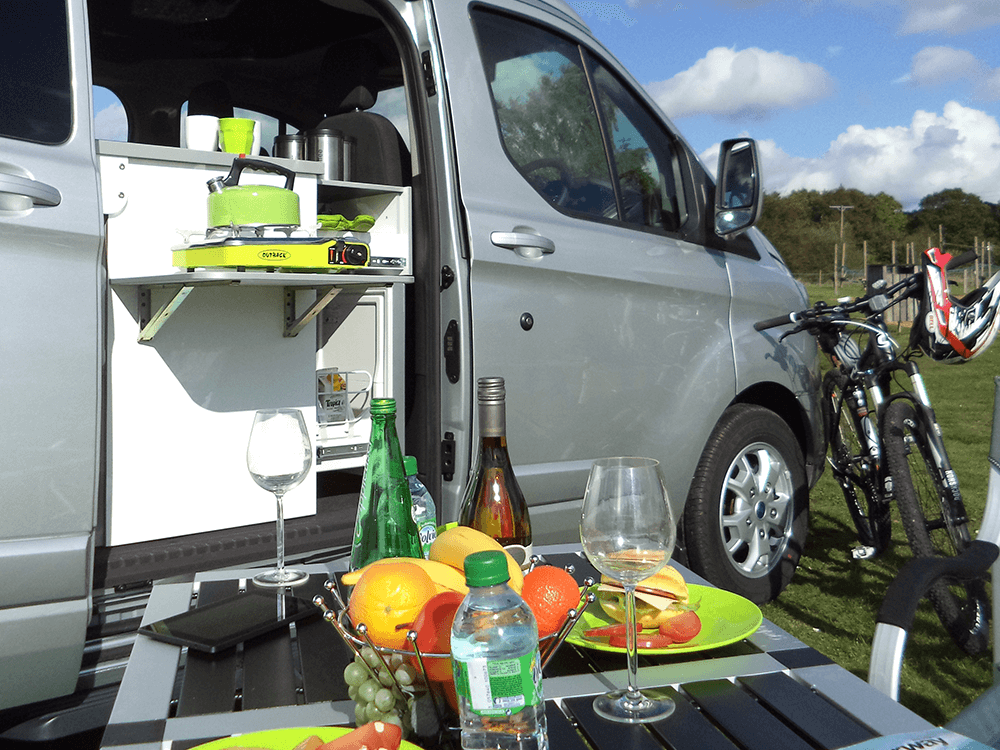

An Intelligently designed Kitchen module integrates an innovative compressor drawer fridge with easy access from inside or outside. The Tourneo twin doors are optimised not only for passenger access, but also creates an inviting outside hub, ideal for entertaining with hot or cold drinks or how about something delicious cooked on the gas hob placed on the flip up exterior table!

Cooking & Dining

Slide out the extended worktop to reveal the hob drawer enabling access to the Camping Gaz portable gas hob. A deep glass topped stainless steel sink is supplied with fresh water from a submersible pump within a 12ltr refillable container – Grey waste empties into a convenient 12ltr container. A tambour door provide access to recharge the fresh water and empty the grey waste and a lower cupboard provides space for an optional Dometic Porta-poti.

Day Van

HEATING, COOLING & ELECTRICS

Optional thermostatically controlled blown diesel heating comes from a 2KW Webasto unit providing comfort for rear passengers when on the move or a snug environment on a winter’s day. Stay cool in the summer with cab air conditioning when on the move.

Because the Tourneo utilises Ford stop - start technology the base vehicle automatically comes with twin batteries with an intelligent timed delay relay to isolate and connect one battery to be used to power habitation lighting and optional kitchen unit and Heating. A powerful 150AH alternator ensures both batteries receive the quickest possible charging time, However it must be recognised a battery can only put out what has been put in. 240V hook up or solar panel options available.

FURNITURE & TRIM

High gloss white high pressure laminated poplar ply offers a robust light weight high end finish and complements the automotive styled aluminium profiles.

Removable units sit securely against the Tourneo’s premium interior factory charcoal lower panels and embossed cream window surrounds. Top and bottom tracks allow lined blackout curtains to glide open set against discreet privacy glass. Ford charcoal fabric provides a tactile and durable interior trim solution.

Furniture & Trim

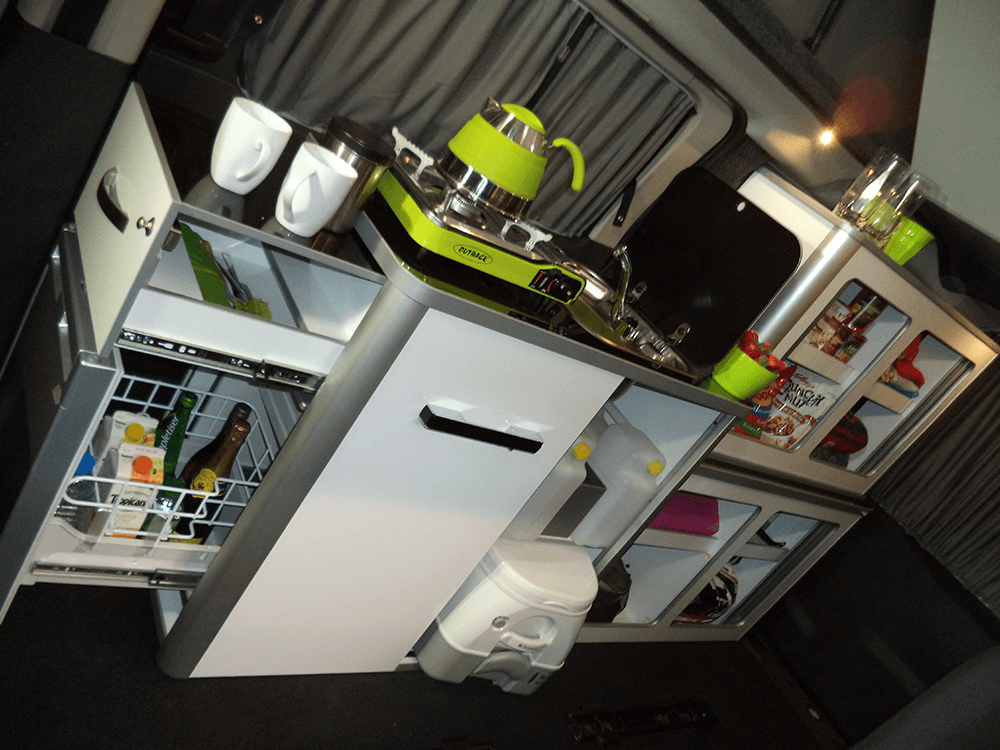

Kitchen UnitKITCHEN UNIT

High gloss white with metallic black work top including lightweight poplar ply core, Alloy corner profiles and 24mm work top. Waeco compressor drawer fridge with removable ice box, Glass topped deep rectangular stainless steel sink, 12ltrs Fresh water tank with integral water pump & 12lts waste tank. Extendable worktop housing portable gas hob, tambour door giving access to cupboard for porta-poti storage. Simplistic over centre lock down system.

Rear Base Unit

REAR BASE UNIT

High gloss white pressure laminate with poplar ply core and alloy corner profiles, polypropylene tambour door with central vertical divider and internal shelves. simplistic over centre lock down system.

Rear Top Unit

REAR TOP UNIT

High gloss white pressure laminate with poplar ply core and alloy corner profiles, polypropylene tambour door with central vertical divider and internal shelves.

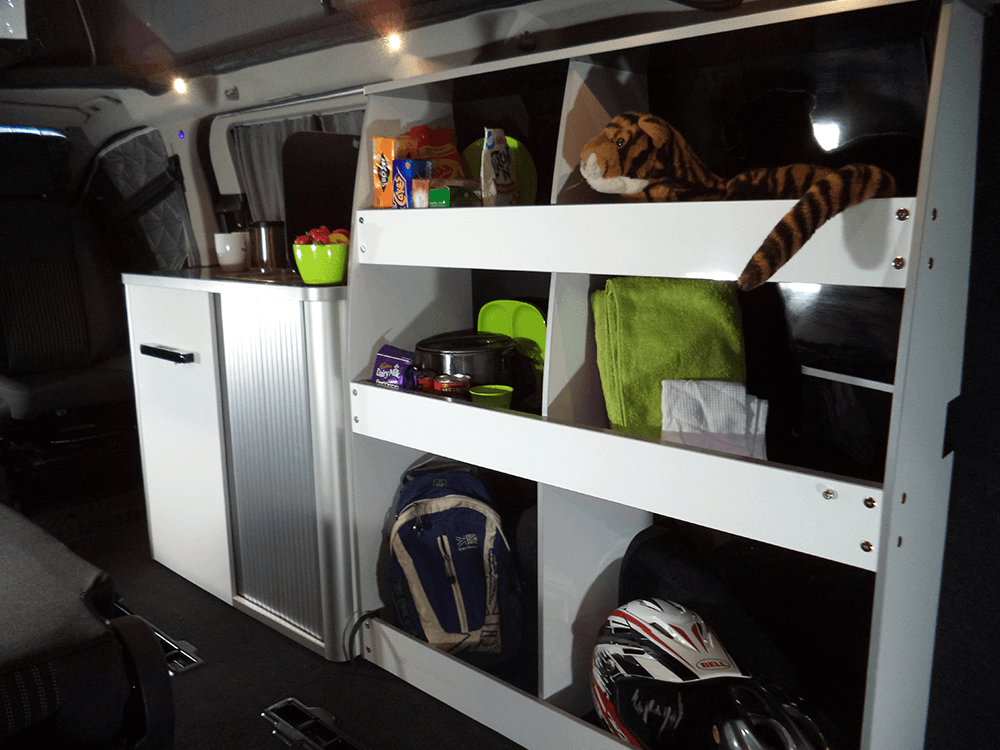

Utility Unit

UTILITY UNIT

Full height, High gloss white high pressure laminate with poplar ply core and alloy corner profiles, multiple open shelves ideal for work or hobbies.

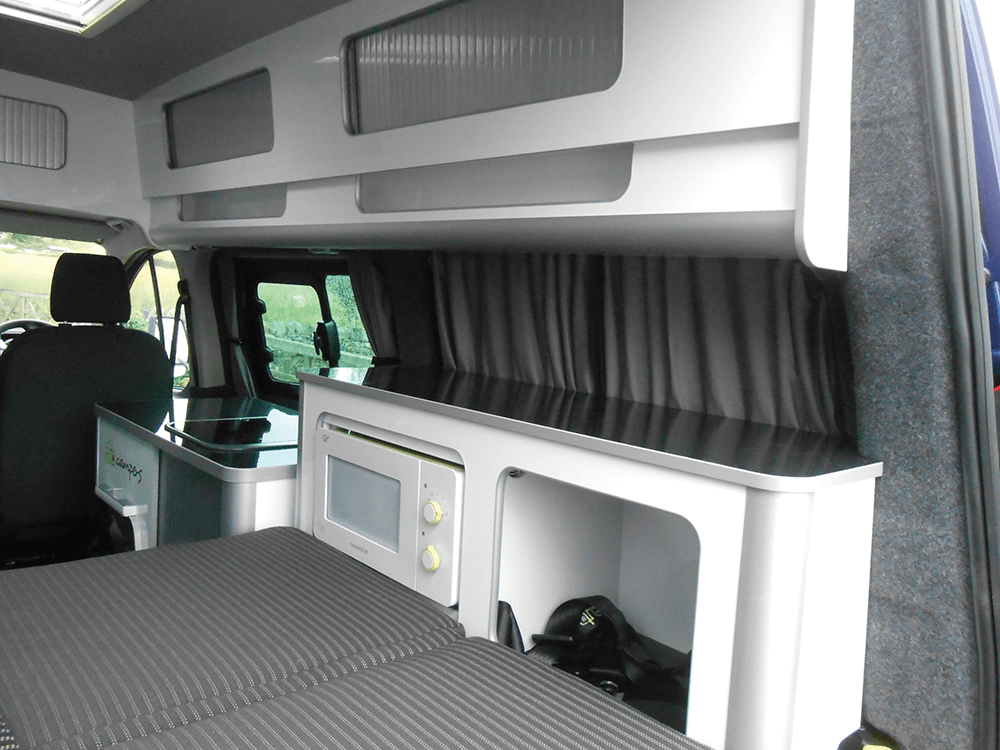

Midi Unit

MIDI UNIT

Convenientally low enough to provide additional work surface and house a 240v/600w microwave. The unit also provides open storage ideal for a bedside cabinet.

SleepingSLEEPING

Because the bed is suspended, the boot is free for loads with individual or all seats removed, alternatively seat backs fold down on to seat bases for the bed to suspend over.

The longitudinal bed extension is suspended from the roof and provides a large double bed, If just the lower stowage unit is fitted, then the optional Transverse cushion sits on top of the unit to create a full width double. (Not available with utility unit).

The Lo-Line Day Van offers 2 lower berths that can be set up as a transverse or a larger longitudinal double bed, the primary bed base is suspended with or without the lower base unit.

The Hi-Line offers 2 lower berths that can be set up as a transverse or a larger longitudinal double bed, the primary bed base is suspended with or without the lower base unit.

The Pop-Top Leisure Van is the only Auto Camper 4 berth conversion, Adults or children can sleep soundly in an optional double roof bed.

Sleeping images
Options
Options
Dimensions
Lo-Line
External Length 4972mm / 16’4”
External Height 1972mm-2020mm / 6’6”- 6’7.5”
External Width 2080mm / 6’ 10”
Berths 2
Fuel Tank Capacity 80ltrs
Pop-Top
External Length 4972mm / 16’4”
External Height (roof down) 2100mm / 6’9”
External Width 2080mm / 6’ 10”
Berths 2-4
Roof Bed 2000mm / 6’7” x 1200 / 3’11”
Fuel Tank Capacity 80ltrs
Hi-Line
External Length 4972mm / 16’4”
External Height 2440mm / 8’0”
External Width 2080mm / 6’ 10”
Berths 2
Fuel Tank Capacity 80ltrs
